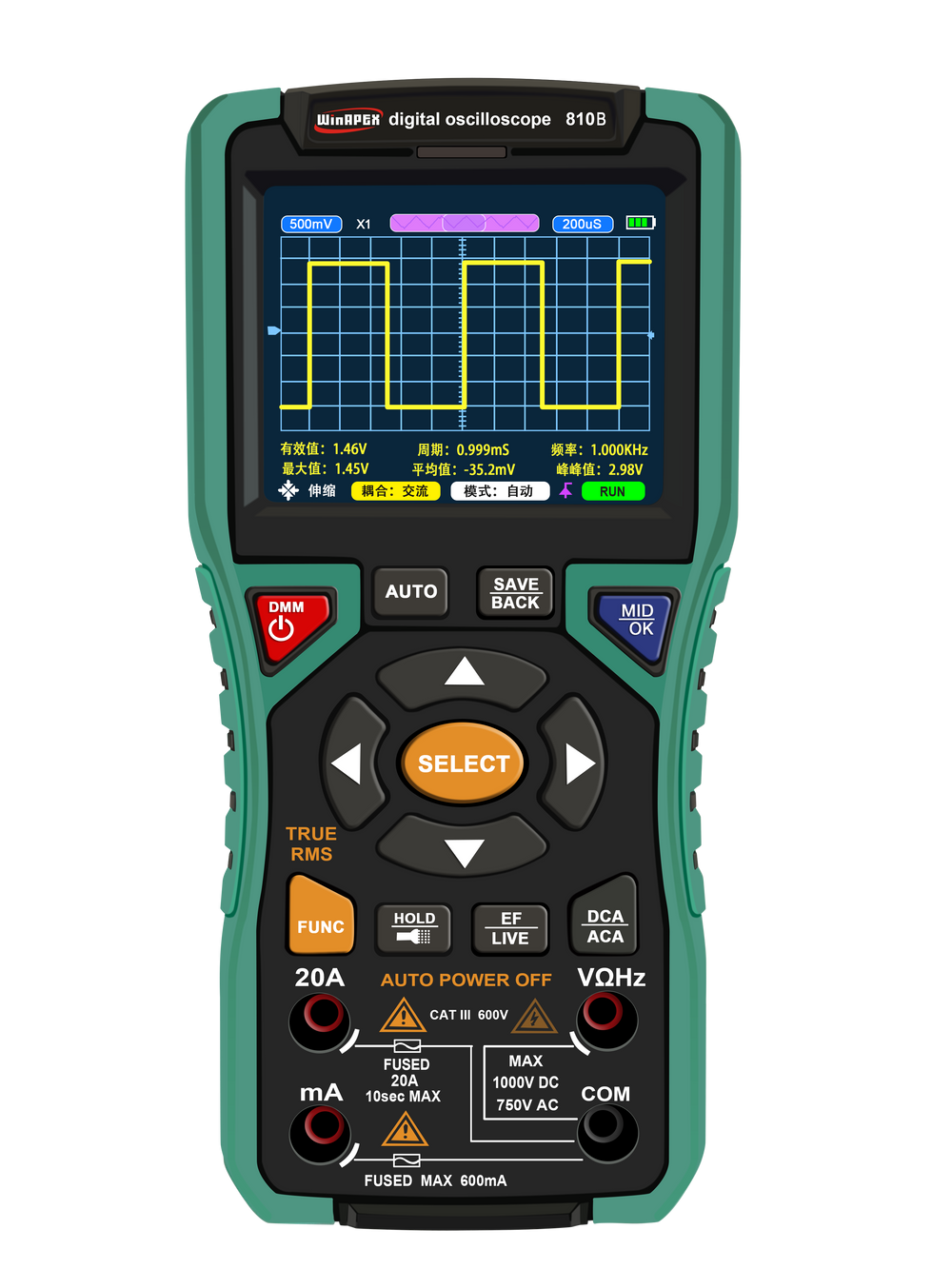

2IN1 WINAPEX 810B Digital Oscilloscope Multimeter 10MHz Bandwidth 50MSa/s Sampling High Sensitivity ±400V Overload Protection

Specifications:

Bandwidth: 10MHz

Sampling Rate: 50MSa/s

Sensitivity: 10mV/div - 10V/div

Maximum Measure Voltage: ±40V (X1), ±400V (X10)

Display: High-resolution color display

Battery: Built-in lithium battery

Protection: Overload voltage automatic cutoff, double fuse protection (500mA and 10A)

Features:

Multifunctional Device: Combines oscilloscope and multimeter for diverse testing needs, ideal for professional use.

High Sensitivity: Offers a sensitivity range from 10mV/div to 10V/div, ensuring precise measurements.

Wide Bandwidth: 10MHz analog bandwidth captures a comprehensive view of signals.

Fast Sampling Rate: 50MSa/s sampling rate enhances accuracy and captures high-speed signals.

Safety Features: Includes an automatic voltage cutoff and double fuse protect against overload..

Package Included:

1 x WINAPEX 810A Digital Oscilloscope

1 x Pair of Test Leads

1 x Oscilloscope Probe

1 x USB Charging Cable

1 x Instruction Manual

1 x Protective Cloth Bag

1 x Built-in Lithium Battery
