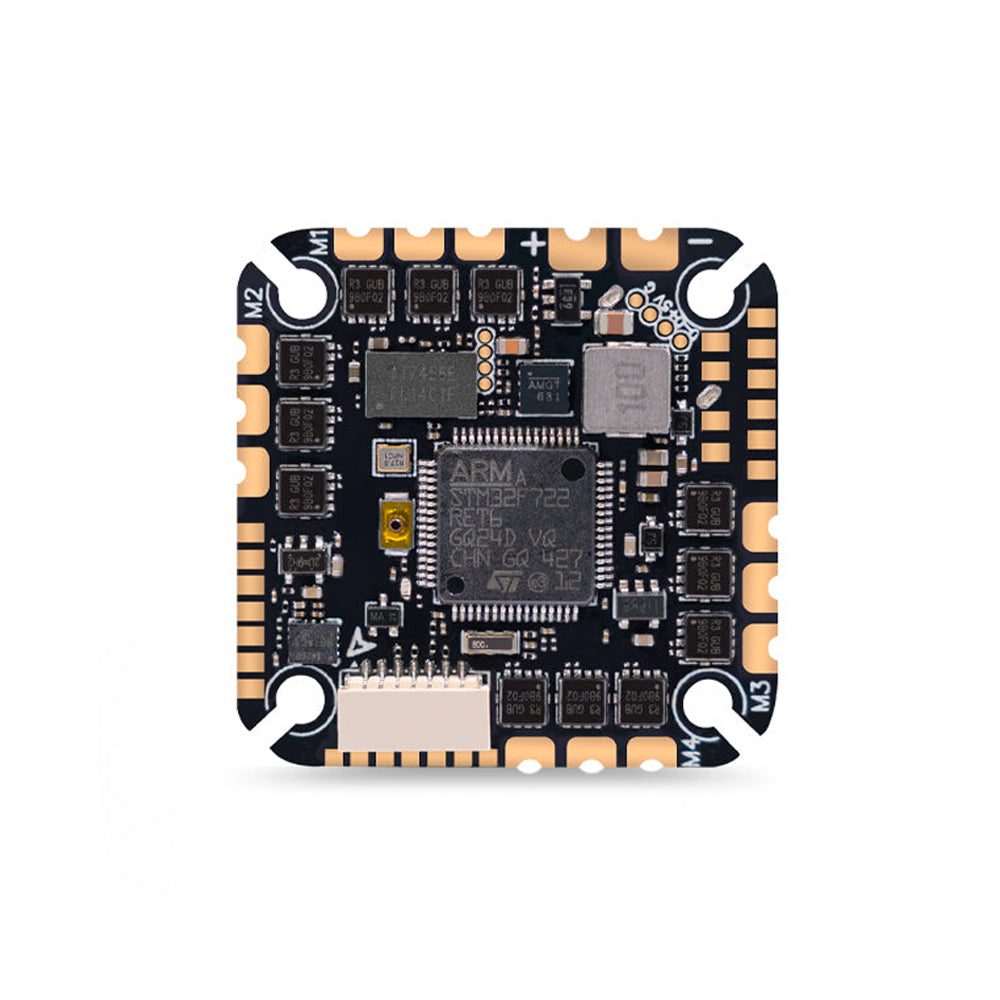

25.5x25.5mm HGLRC F722 40A V2 AlO F722 Flight Controller with 40A 2-6S 4in1 ESC for 2-5 Inch RC FPV Racing Drones

Specification:
Product Name:: F722 40A AIO V2
Firmware Target: HGLRC_F722_S
Firmware Version: 2025.12
MCU: STMF722
Gyro: ICM42688P
Blackbox: 16MB
OSD: Support Analog & Digital Signal
BEC: 5V 2A
ESC Firmware: BL32 32.10
Input Voltage: 8.4-25.2V(2-6S)
Operating Current:
Regulated Single Channel Continuous Rated Current: 40A
Single Channel Peak Current: 60A
Quad Channel Peak Current: 140A
Mounting hole pattern: 25.5X25.5mm*M2
Applicable models: 2 Inch - 5 Inch frames
Dimensions: 34X34mm
Package Size: 65 x 35 x 65mm
Weight: 10.5g
Total Weight: 50g

Feature:
- High-performance F7 flight controller with ICM42688P gyro and 16MB Blackbox, delivering ultra-precise flight data for freestyle and racing quads.

- Integrated 40A 4-in-1 ESC (BL32 firmware, 2–6S input) with 80A peak per channel, perfect for powerful 5-inch FPV builds.

- Optimized AIO UART and solder pad layout, designed for clean wiring and easy installation on 25.5×25.5mm whoop and toothpick frames.

- Universal VTX interface supports both analog and digital video systems, simplifying connection and upgrades for FPV pilots.

- Compact 34×34mm, only 10.5g, with 5V 2A BEC output to power camera, receiver, LEDs and accessories from a single board.

Package Included:
1 x HGLRC F722 40A 2-6S BL32 AlO V2
