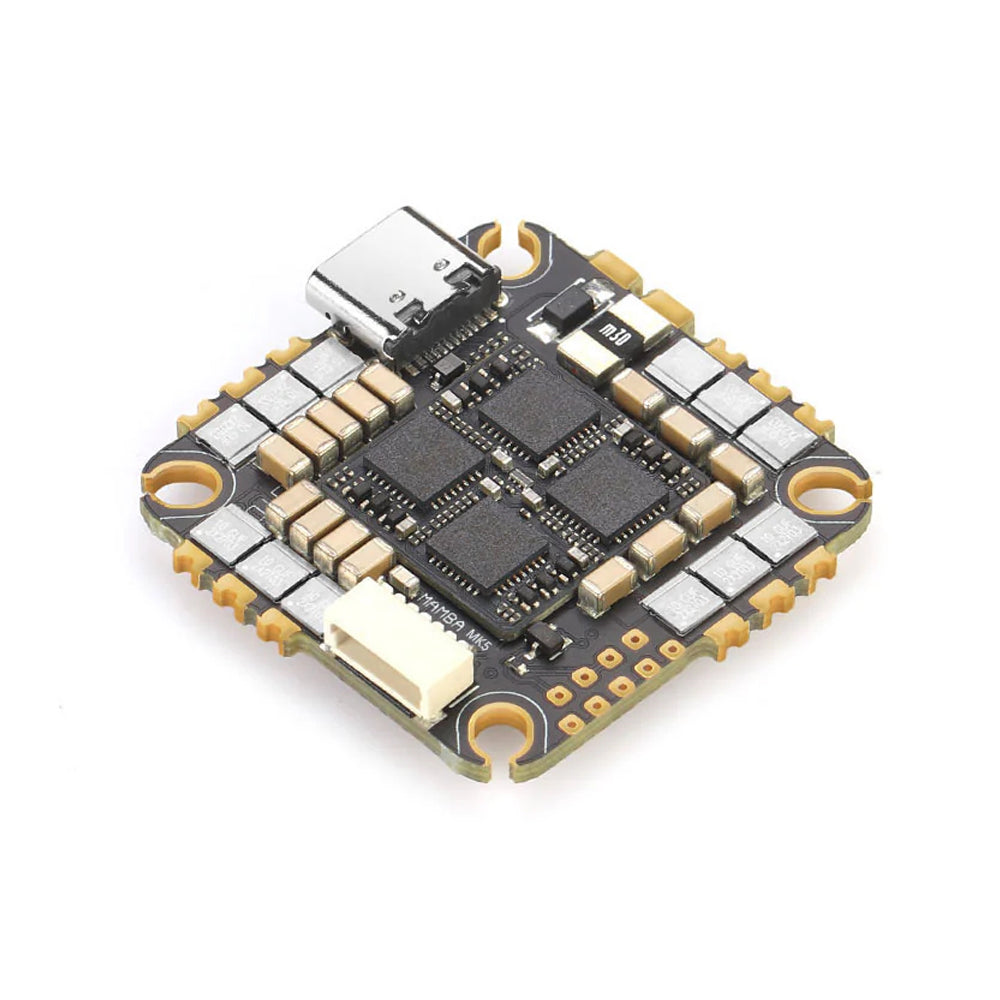

25.5×25.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone

$75.99

In Stock

Description

Please notice：This AIO only Support Alpha not support BetaFlight.

Specification

Item Name: MK5 G4 AIO

FC	Target: Alpha MCU: 170MHz STM32G473 GYRO: IIM-42652 OSD: Yes Uarts: 4 Set Motor Signal:4 Set ESC Soft: Dshot300/600/1200/2400 Power Led: Yes LED Controller: Yes AIR UNIT Port: Yes Buzz: Yes Input: 4~6S Lipo (14.8~25.2V) BEC Protection: Yes Receiver Protection: Yes TVS Protection: Yes BEC: 10V 2A& 5V 2A Mounting size: 25.5×25.5mm/M2 Overall dimensions: 35×34.5×6.5mm
ESC	Input: 4~6S Lipo (14.8~25.2V)f Continue Current: 40A×4 Burst current: 45A (10S) Target：BLHeli_32 MAMBA F40_128K SOFT: Dshot300/600/1200/2400 PWM:24~128K

Supply :
High Frequency 470uF/35V ×1
AIR UNIT sh1.0 ×1
16AWG 60mm ×2
AMASS Original XT60

Package Included:
1 x MAMBA MK5 G4 AIO
