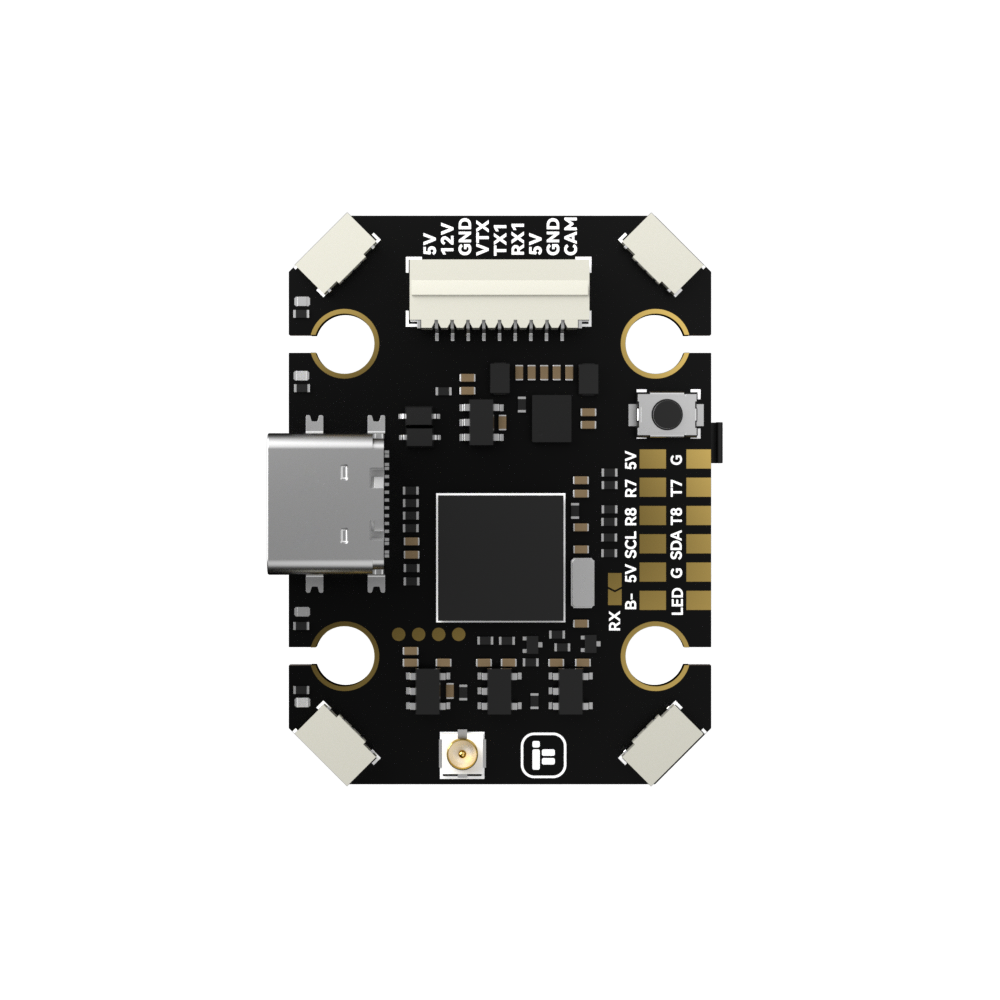

20x20mm iFlight Borg Mini H7 Flight Controller Built-in ELRS Receiver & 4-8S 60R / 60RS 4in1 ESC for FPV Racing Drones
Description
The Borg Mini H7 Flight Stack is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Flight Controller Features:
- Supports 4S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs enhance reliability across.
- Onboard ELRS 2.4G receiver with external antenna, supports switching to external receivers.
- Onboard 4 LED strip interfaces with short-circuit protection, so an LED short circuit will not affect flight controller operation.
Model: Borg
Item Name: Borg Mini H7 Stack
Item |
Specifications |
Borg Mini H7 Flight Controller |
Input voltage: 4-8S; Support LIHV battery MCU: STM32H743VIH6 Gyro: ICM42688 OSD Chip: AT7456E（LGA） Flash: 32MB (Blackbox flash) UARTS: 5 Motor outputs: 4 I2C serial: Support VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Betaflight Firmware target: IFLIGHT_BORG_Mini_H7 Mount pattern: 20*20 φ4 Dimensions: 36*27mm±1 Weight: 7.7g±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) |
SMD Receiver |
MCU: ESP8285 RF: SX1281 Receiver Type: 2.4GHz Telemetry power: 100mW (20dBm) LNA: YES Lua Script: iFlight 2400 RX TCXO: Yes Firmware: iFlight2.4GHz_2400_RX |
Borg 60R ESC |
Input Voltage: 4-8S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: No BEC: No Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45x52mm±1 Mounting Holes: 20x20 mm/Φ4 Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. |
Borg 60RS ESC |
Input Voltage: 4-8S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: No BEC: No Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45*35mm±1 Mounting Holes: 20 x20 mm/Φ4mm Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. |
Packing List:
Borg Mini H7 Stack(60R 4-IN-1 ESC) |
1 x Borg Mini H7 Flight Controller With SMD Receiver 1 x Borg 60R 4-in-1 ESC 1 x Cable set 5 x silicon grommets |
Borg Mini H7 Stack(60RS 4-IN-1 ESC) |
1 x Borg Mini H7 Flight Controller With SMD Receiver 1 x Borg 60RS 4-in-1 ESC 1 x Cable set 5 x silicon grommets |
Borg Mini H7 Flight Controller |
1 x Borg Mini H7 Flight Controller |
