20x20mm iFlight Borg Mini F7 Flight Controller Built-in ELRS Receiver & 4-8S 60R / 60RS 4in1 ESC for RC FPV Racing Drones
Description
Description:

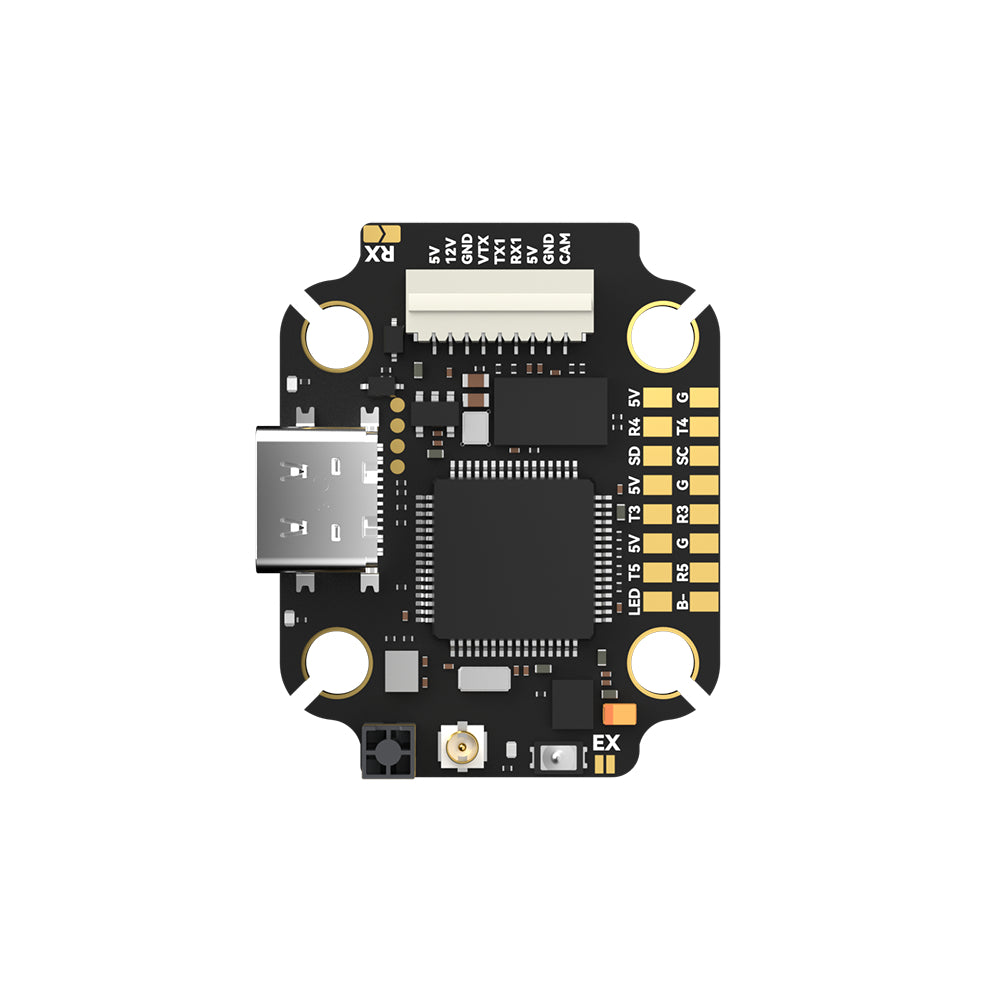

The Borg Mini F7 Flight Controller (With SMD Receiver) is custom-built for racing FPV and delivers exceptional performance. This advanced controller comes with a built-in ELRS 2.4GHz receiver and integrated antenna. It delivers a stable signal connection and smoother flight control during use.
Beyond its internal receiver, the Borg Mini F7 Flight Controller (With Receiver) also supports external receivers.
Borg Mini F7 Flight Controller Features:
- Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
- Supports 4S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specifications:
Model: Borg
Item |
Specifications |
Borg Mini F7 Flight Controller |
Input voltage: 4-8S; Support LIHV battery MCU: STM32F722RET6 Gyro: ICM42688 OSD Chip: AT7456E（LGA） Flash: 16MB (Blackbox flash) UARTS: 6 Motor outputs: 4 I2C serial: Support VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Betaflight Firmware target: IFLIGHT_BLITZ_F722 Mount pattern: 20x20 φ4 Dimensions: 34x28.5mm±1 Weight: 6.8g±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) |
SMD Receiver |
MCU: ESP8285 RF: SX1281 Receiver Type: 2.4GHz Telemetry power: 17mW (12.3dBm) LNA: No Lua Script: iFlight 2.4GHz Nano TCXO: Yes Firmware: iFlight 2.4GHz Nano RX |
Borg 60R ESC |
Input Voltage: 4-8S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: No BEC: No Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45x52mm±1 Mounting Holes: 20x20 mm/Φ4 Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. |
Borg 60RS ESC |
Input Voltage: 4-8S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: No BEC: No Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45*35mm±1 Mounting Holes: 20 x20 mm/Φ4mm Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. |
Packing List:
Borg Mini F7 Stack(60R 4-IN-1 ESC) |
1 x Borg Mini F7 Flight Controller With SMD Receiver 1 x Borg 60R 4-in-1 ESC 1 x Cable set 5 x silicon grommets |
Borg Mini F7 Stack(60RS 4-IN-1 ESC) |
1 x Borg Mini F7 Flight Controller With SMD Receiver 1 x Borg 60RS 4-in-1 ESC 1 x Cable set 5 x silicon grommets |
Borg Mini F7 Flight Controller |
1 x Borg Mini F7 Flight Controller |
