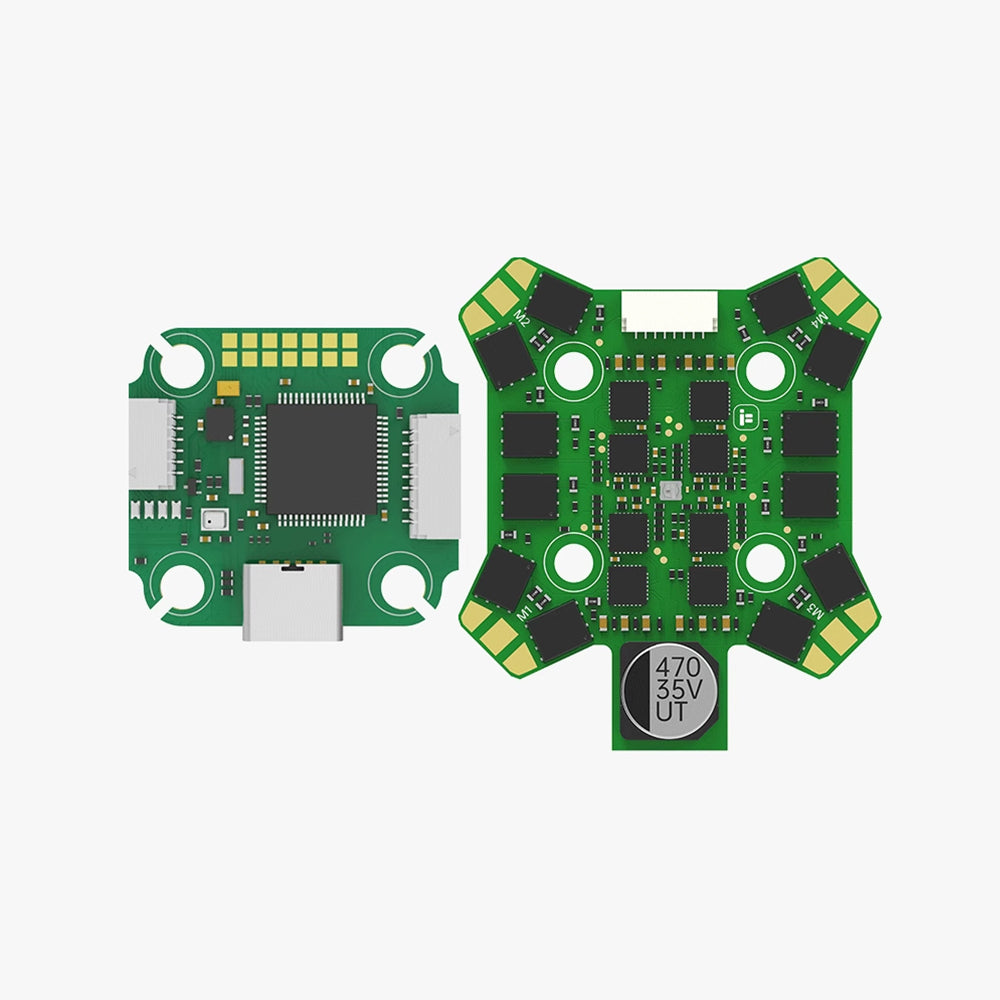

20x20mm iFlight BLITZ Mini F7 V1.1 Flight Controller & E55R 55A 2-6S BL_S 4in1 Brushless ESC Stack for RC Drone FPV Racing
Description
- Brand: iFlight
- RC Drone Spare Parts: Flight Controller
Specifications:
Product Name |
BLITZ E55R 4-IN-1 ESC (G2) |
Input Voltage |
2-6S |
Max. Continuous Current |
55A |
Max. Burst Current |
65A |
MCU |
G071 |
BEC |
No |
Firmware |
BLHeli32 |
Current Sensor |
Yes |
Current rate |
200 |
Telemetry |
Supported |
Target |
IFLIGHT_BLITZ_G2 |
Mounting Holes |
20 x20 mm/Φ4mm |
Weight |
11.3g |
Protocol |
Supports DShot150/300/600/MultiShot/ OneShot etc. |
Product Name |
BLITZ Mini F7 V1.1 Flight Controller |
MCU |
STM32 F722 |
Gyro |
BMI270 |
Barometer |
DPS310 |
OSD Chip |
AT7456 |
Flash |
16MB (Blackbox flash) |
UARTS |
6 |
Motor outputs |
4x (SH1.0 connector) |
I2C serial |
SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported |
LED controller |
Yes |
Beeper pad |
Yes |
Firmware target |
IFRC-IFLIGHT_BLITZ_F722 |
Mount pattern |
20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws |
Dimensions |
30.5x27 mm |
Weight |
5g |
Features:
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
BLITZ Mini F7 V1.1 Flight Controller Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
