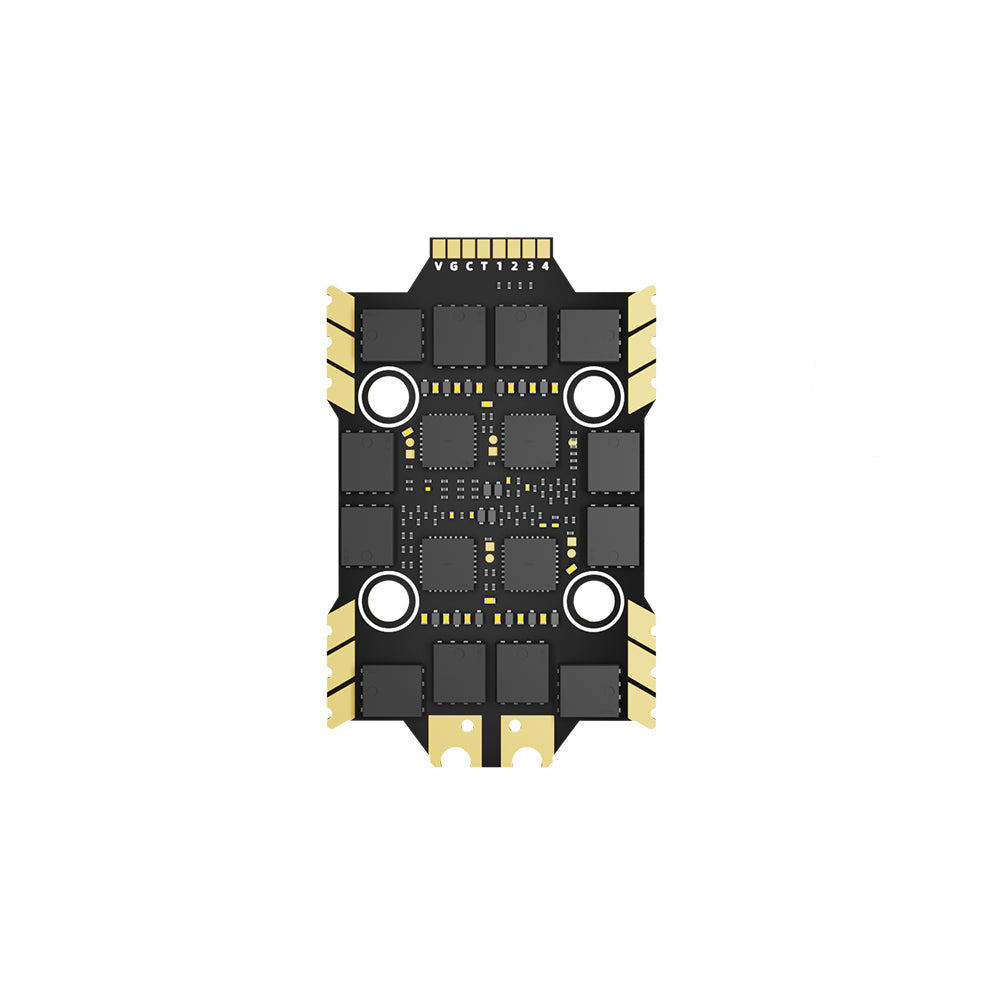

20×20mm HGLRC 60A 4IN1 6S BL32 MINI V1 ESC for RC FPV Racing Drones

Specification:
Product Name: 60A 4IN1 6S BL32 MINI V1 ESC
ESC Input Voltage: 3-6S
Continuous Current: 60A per channel
Peak Current: 65A per channel(10 seconds)
Firmware: BL-32(32.10)
ESC Dimensions: 52X33mm
Mounting Hole Pattern: 20×20mm*M3
Supported Protocols: DShot600/300
Weight: 13g

Feature:
- High-Power 4-in-1 ESC: 32-bit 60A 4-in-1 ESC for 6S FPV drones, delivering strong, responsive power output for aggressive freestyle and racing flights.

- Efficient Heat Dissipation Design: Immersion gold PCB and optimized layout improve heat dispersion and current handling, helping maintain stable performance during high‑load maneuvers.

- Simplified Wiring & Installation: Direct plug connection to the FC and clearly marked pads make building and maintenance easy, ideal for compact frames and clean stacks.

- Advanced BLHeli_32 Firmware: BL32 firmware supports precise throttle control, smooth acceleration, and customizable parameters for fine‑tuning your quad’s flight characteristics.

- DShot600/300 Compatible: Fully compatible with DShot600/300 digital protocols, ensuring fast signal response, accurate ESC calibration, and reliable flight control.

Package Included:
1 x ESC
