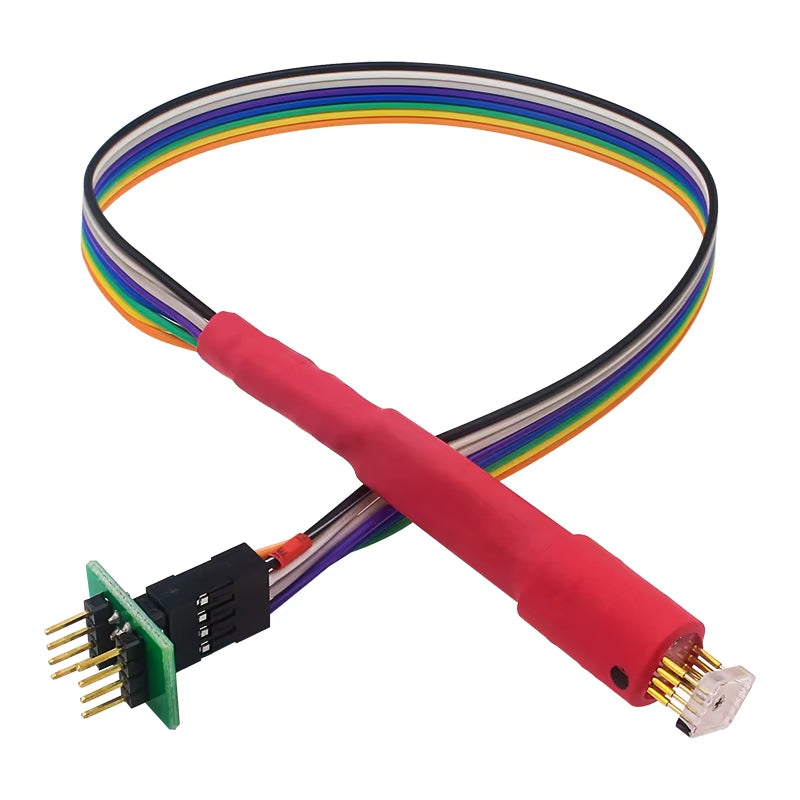

1PCS SOP8 150mil/208mil Chip Burn Write Probe Handheld Block 2×4Pin Programmer Connection Cable Surface Mount Chip EEPROM Programming Probe

Specification:
Product Name: SOP8 Chip Programming Burn Write Probe
Probe Type: Spring‑loaded pogo pin, replaceable
Supported Packages: SOP8 150mil, SOP8 208mil (also suitable for most SOIC8 / VSOP8 with same pitch)
Pin Pitch: 1.27 mm
Cable Type: 8‑core DuPont rainbow ribbon cable
Cable Length: approx. 30 cm
Connection: 2×4‑pin header to universal programmer socket / adapter board
Housing Color: Red probe block + multicolor cable

Features:
1. Direct in‑circuit programming: touch probe tip to SOP8/WSON8 chip pins without removing the chip from PCB.
2. Gold‑plated pogo pins: stable contact and low contact resistance for flashing, reading and testing.
3. Elastic stop‑block structure: built‑in limit stop keeps probe travel uniform and helps control pressure on chip pins.
4. 3D‑shaped handheld block: enlarged grip section for comfortable holding during long programming work.
5. Replaceable needle design: individual pogo pins can be replaced with included spare needles using the screw and screwdriver.
6. Programmer‑ready connector: 2×4‑pin adapter board at cable end can plug straight into most universal EEPROM/MCU programmers via Dupont header.

Package Includes:
Option SOP8‑150mil:
1 x SOP8‑150mil chip burn write probe
2 x Spare pogo pins
1 x Fixing screw for probe
1 x Mini screwdriver

Option SOP8‑208mil:
1 x SOP8‑208mil chip burn write probe
2 x Spare pogo pins
1 x Fixing screw for probe
1 x Mini screwdriver
