16MP Industrial Microscope Camera Electronic Eyepiece HDM=I USB for Biological Microscope Stereo Microscope

Specifications:

Model: HY-5100

Sensor: 24MP CMOS

Optical Format: 1/2.9 inch

Pixel Size: 2.85μm x 2.85μm

Interface: HDM=I (Type A), USB (Type B), Small Memory Card

Photographic Image Resolution: 16MP (4K: 4680 x 3456)

HDM=I Resolution: 1920 x 1080P

HDM=I Scale: Support 4:3, 16:9, 16:10 screen

USB 2.0 (Drive Free): 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS

Small Memory Card: Up to 128GB (not included)

AWB: Color correction/automatic/manual, independent R.G.B value setting

Exposure: Automatic/manual, AE value can be set

Cross Line: 8 lines, color, width, position can be set

Scale Line: 2 lines

Sharpness, Contrast, Color Gain: Support

Mono Negative Film: Support

Language: English, Simplified Chinese, French, Spanish, Japanese, German, and other languages

Digital Zoom: Support

Infrared Remote Control: Support

Voltage Input: DC 12V

Power Supply Voltage: Input: AC100-240V, Output: DC 12V

Lens Interface: C/CS port

Remote Control Battery: 1 x CR2025 button battery (delivered without battery)

Adapter: 0.5X Reducing Lens (23.2mm to 30mm, 30.5mm)

Features:

High-Resolution Imaging: Equipped with a 24MP CMOS sensor, it captures detailed 16MP images (4K: 4680 x 3456) suitable for high-precision microscopy.

Versatile Interface Options: Provides multiple connection options including Hdm(Type A), USB (Type B), and memory card support, making it adaptable for various setups.

Advanced Image Controls: Supports AWB, exposure settings, sharpness, contrast, and color gain control for enhanced image customization.

Digital Zoom and Cross Line Features: Offers digital zoom functionality and customizable cross and scale lines for precise measurements and analysis.

Multilingual and Remote Controlled: Comes with support for various languages and an infrared remote control for ease of operation.

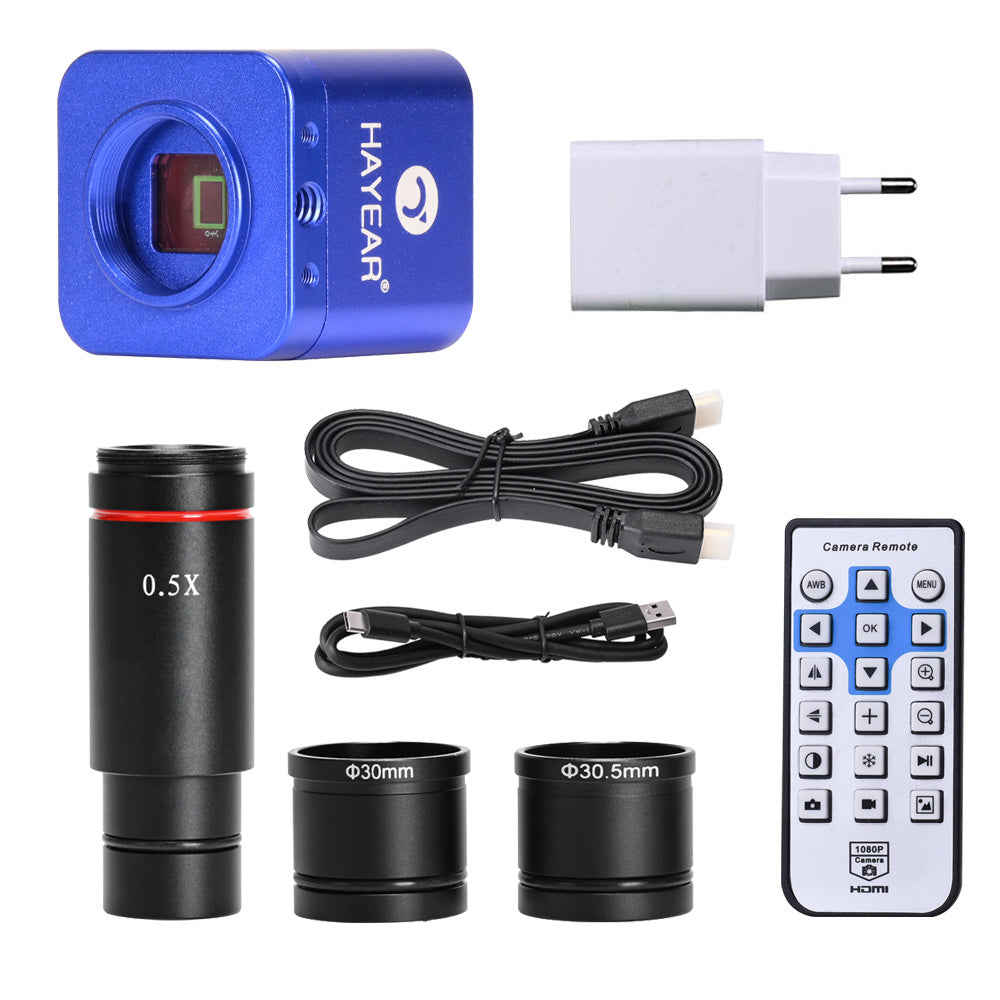

Package Included:

1 x Microscope Camera

1 x IR Remote Control

1 x Power Adapter

1 x Paper Manual

1 x HDM=I Cable

1 x USB Cable

1 x 0.5X C-Mount Adapter

1 x 23.2mm to 30mm Adapter Ring

1 x 23.2mm to 30.5mm Adapter Ring

1 x Measurement Software (Online Download)
