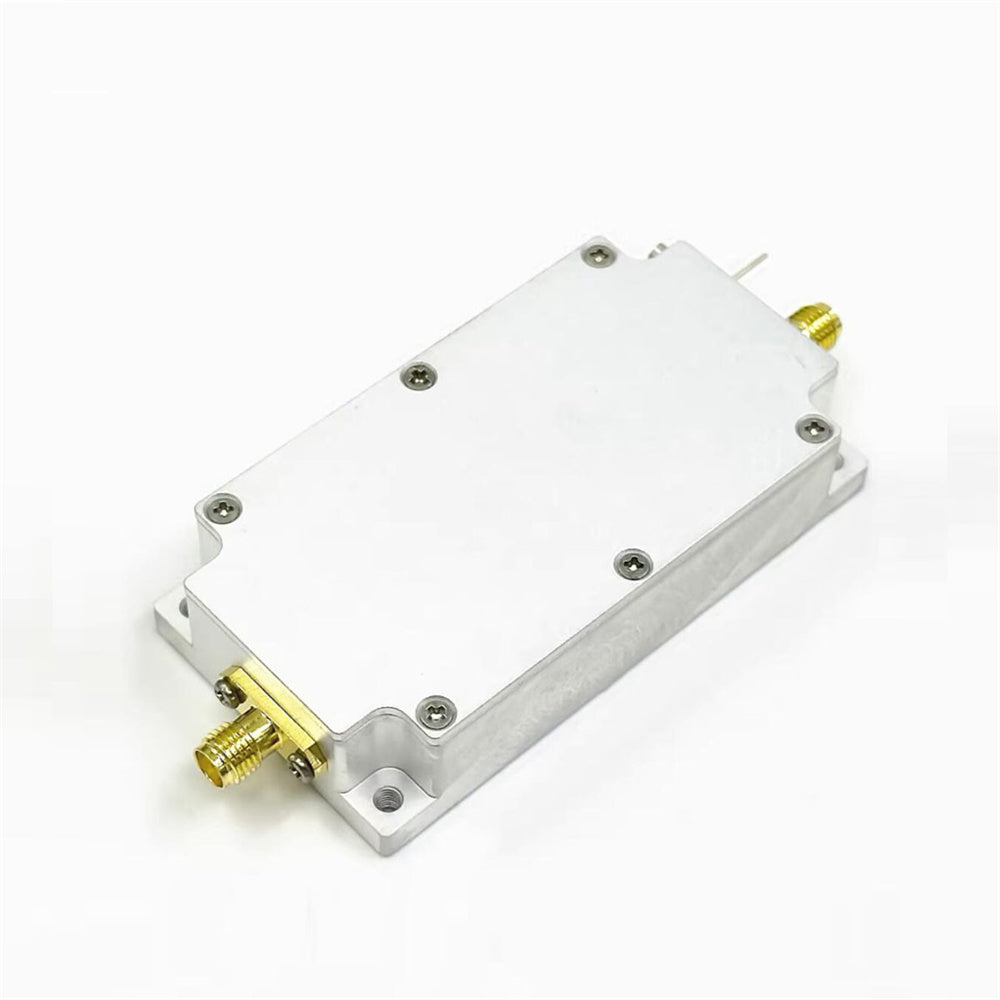

15W RF Power Amplifier 820-970MHz 915MHz 1250MHz 1420MHz 1575MHz 20-28V SMA Connector High Gain Helium Miner LORA SDR Ham Radio GPS

Specifications:

Product Name: RF Power Amplifier

Output Power: 13W (41dBm @ 24V, RFin = 5dBm), 15W (42dBm @ 28V, RFin = 5dBm), 20W (43dBm @ 28V, RFin = 7dBm)

Operating Voltage: 20-28V (24V recommended)

Working Current: 1.7A (depending on supply voltage)

System Impedance: 50 ohms

Connector Type: Female SMA head (inner hole outer screw)

Weight: 95g

Cooling Requirement: Additional heatsink required

Model Specific Frequencies:

820-970MHz Model: Working Frequency: 820-970MHz, Size: N/A

1420MHz Model: Working Frequency: 1320-1520MHz, Size: 76x40x16.5mm

1250MHz Model: Working Frequency: 1200-1320MHz, Size: 76x40x16.5mm

1575MHz Model: Working Frequency: 1500-1650MHz, Size: 76x40x16.5mm

Features:

High Power Output: Delivers up to 20W RF power, enhancing signal strength and range.

Multiple Frequency Options: Covers a range of models from 820MHz to 1650MHz, catering to different needs.

Voltage Flexibility: Operates on 20-28V, with 24V recommended for optimal performance.

Low Input Power: Requires only 5-7dBm (3-5mW) RF input for effective amplification.

Compact and Lightweight: Weighs just 95g, making it easy to integrate into various setups.

Package Included:

Type A:

1 x 915MHz RF Power Amplifier

1 x Power Adapter

Type B:

1 x 1250MHz RF Power Amplifier

1 x Power Adapter

Type C:

1 x 1420MHz RF Power Amplifier

1 x Power Adapter

Type D:

1 x 1575MHz RF Power Amplifier

1 x Power Adapter
