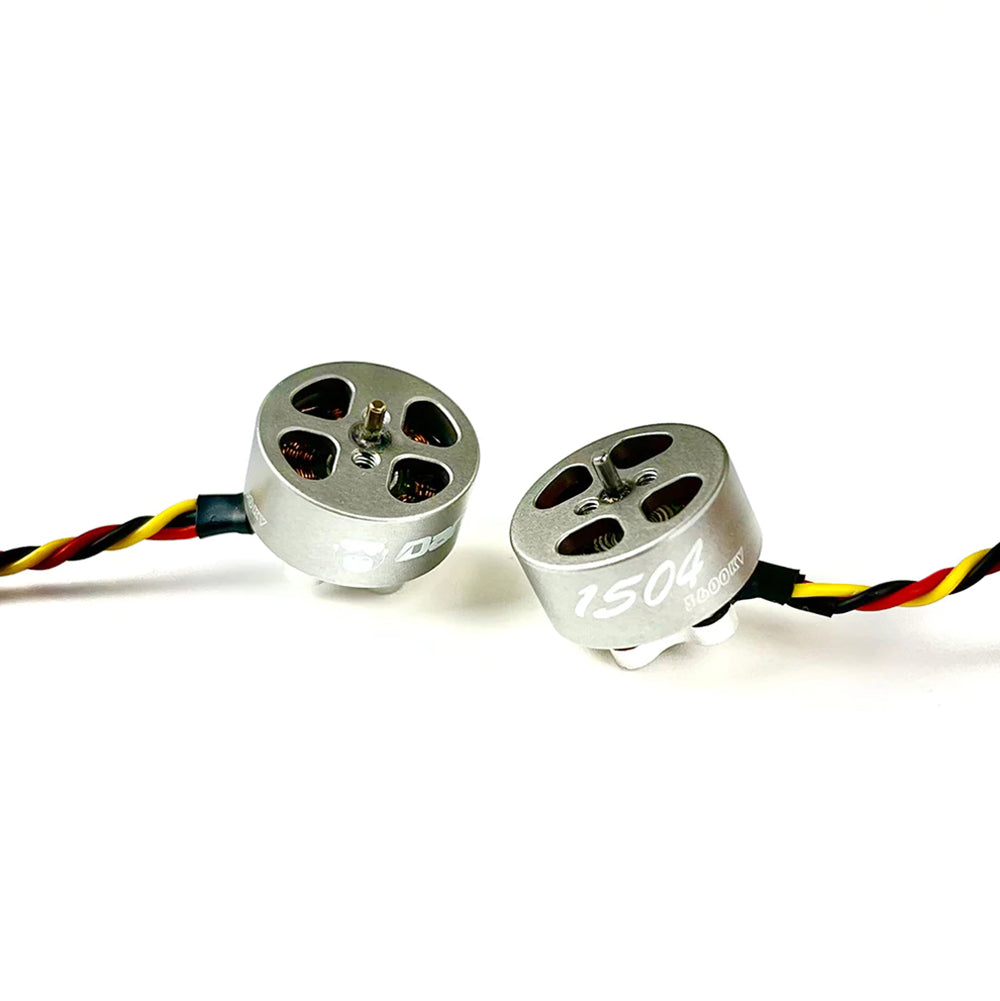

1504 2300KV 4-6S / 3600KV 4S Brushless Motor 1.5mm Shaft for CineApe 25 2.5 Inch Whoop 3-4 Inch Toothpick BabyApe II RC Drone FPV Racing
Description
- Voltage: 4S
- RC Drone Spare Parts: Motor
Introduction:
LinkMejor 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g. Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5" hoop or 4" toothpick quadcopters. Features: The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality. Lightweight design, weighing only 10g, greatly improves the battery life of the drone. Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing. The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.
Specifications:
Model: 1504
Item Name: 1504 2300KV 4-6S / 3600KV 4S Brushless Motor
| Optional KV Version | 2300KV |
3600KV |
| Input Voltage | 4-6S | 4S |
| Number of slot poles |
12N14P |
12N14P |
| Stator size |
15x4mm |
15x4mm |
| Out shaft diameter |
1.5mm |
1.5mm |
| Mounting hole |
9x9mm (M2) |
9x9mm (M2) |
| Weight |
10g |
10g |
| Lead wire specifications |
26#AWG |
26#AWG |
| Maximum Power |
192W |
168W |
| Maximum Current |
8A |
10.5A |
| Application: |
6S for 2.5 inch whoop FPV drone 6S for 3 inch toothpick quadcopters 4S for 4 inch toothpick quadcopters |
4S for 2.5 inch whoop FPV drone 4S for 3 inch toothpick quadcopters |
Packing Included:
1x 1504 Motor
4x M2*4 Screws
OR
2x 1504 Motor
8x M2*4 Screws
