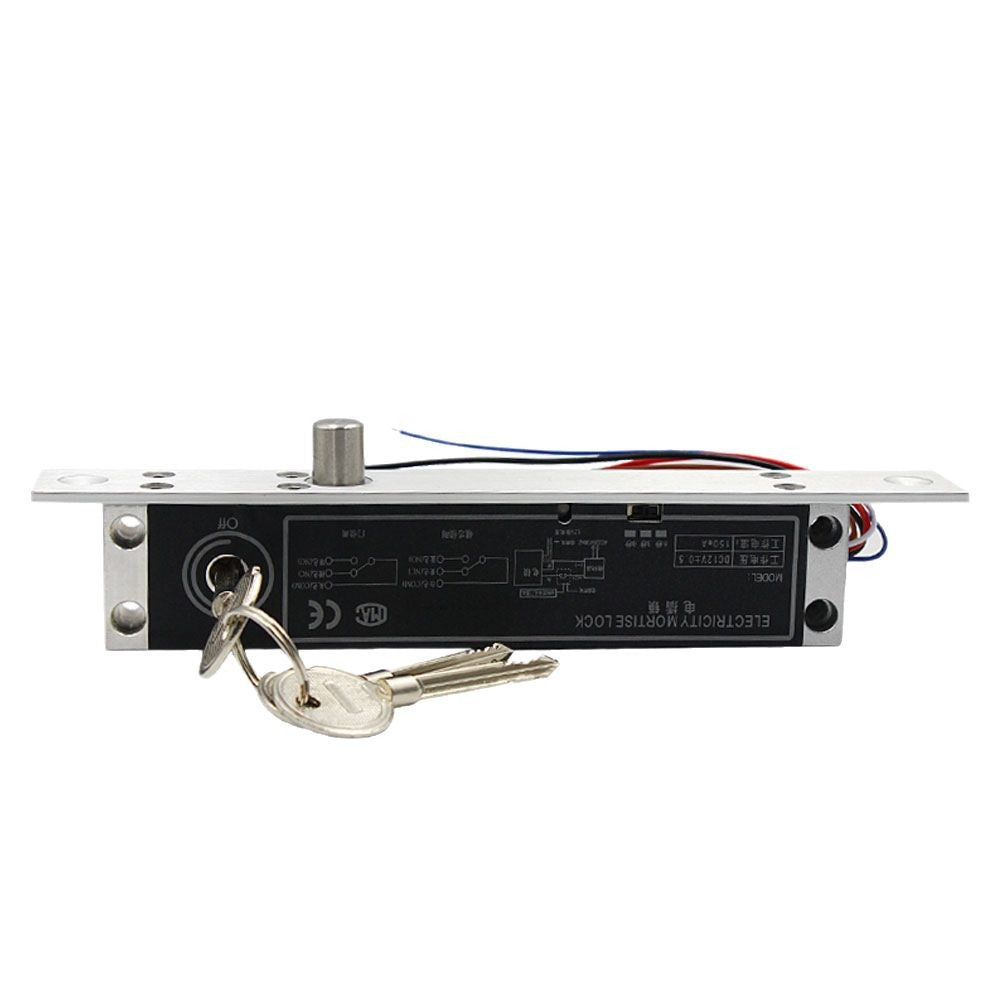

12V Electric Drop Bolt Lock Fail Secure Magnetic Deadbolt Door Lock with Time Delay Key Cylinder for Access Control Systems - Silver

Specification:
Product Name: Electric Mortise Lock
Material: Aluminum alloy housing and stainless steel bolt
Voltage: 12V DC
Current: Start Current 1.3A, Working Current 0.08A
Lock Dimensions: 220mm (L) x 34mm (W) x 28mm (H)
Bolt Diameter: 12.5mm
Bolt Length: 15mm ± 1mm

Features:
1. Made with high-quality aluminum alloy for secure construction.
2. Adjustable delay time (0-3-6 seconds) for enhanced control.
3. Emergency manual unlocking with included key.
4. Signal output function for door position detect.
5. Reinforced with hex screws for improved stability.
6. Compact design compatible with 12V electrical systems.

Package Includes:
1 x Electric Mortise Lock
3 x Keys
1 x Mounting plate
4 x Fixing Screws
1 x User Manual
