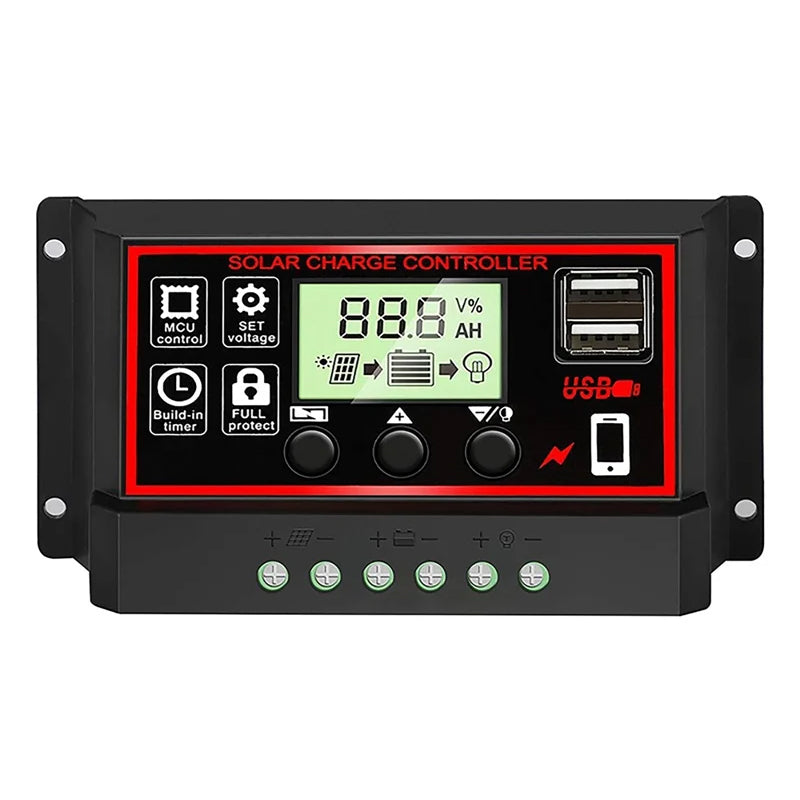

12V/24V10A-100A LCD Display Dual MOS PWM Control Solar Charge Controller with USB Solar Controller for Solar System Use

System connection:

1. Connect the battery to the charge regulator-plus and minus.

2. Connect the photovoltaic module to the regulator-plus and minus.

3. Connect the consumer to the charge regulator-plus and minus.

Features:

1. When using the solar controller to charge the battery, the controller will automatically check the voltage.

2. When transferring positive and negative charges to the controller, do not reverse.

3. Connect the solar panel to the solar controller.

Note: Strictly comply with solar panels and solar controllers. Otherwise, the solar controller may be damaged.

Specification:

Name: Solar Controller

Material: PVC

Voltage: 12V/24V automatic identification

Rated charging current: 10-100A

Rated discharge current: 30A

The highest photovoltaic voltage: 12V system＜25V/24V system＜50V

USB output: 2 USB outputs, maximum 5V/2A

Standby current: <10mA

Working temperature: -35℃~+60℃

Certification: CE/RoHS

Size: 180 * 90 * 45mm

Packing Included:

1 x Solar Controller
