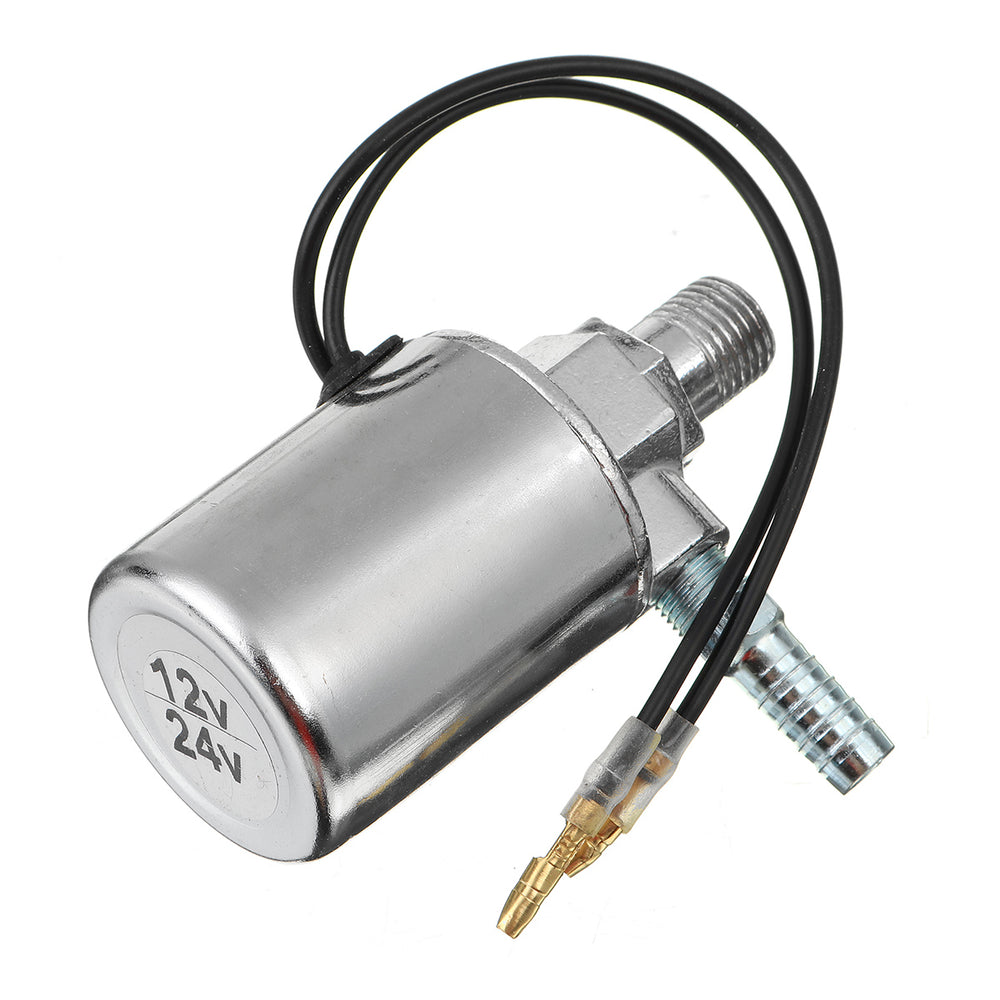

12V 24V Air Horn Train Truck Electric Solenoid Valve Heavy Duty 1/4'' Chrome
$5.00
In Stock
Description
Descriptions:
This Electric Solenoid (air valve) are used with air horns are for both 12 volt and 24 volt vehicles .
When the vehicle's horn button is depressed, the Solenoid becomes electrically energized,
opening its chamber and permitting air to reach the horn.
The solenoid remains engaged as long as the horn button is depressed. Max 150 PSI.
Threaded air outlet screws in to any horn that has a 1/4" female thread,
and the compression air inlet side will accommodate a 1/8" outer diameter hose.
When the vehicle's horn button is depressed, the Solenoid becomes electrically energized,
opening its chamber and permitting air to reach the horn.
The solenoid remains engaged as long as the horn button is depressed. Max 150 PSI.
Threaded air outlet screws in to any horn that has a 1/4" female thread,
and the compression air inlet side will accommodate a 1/8" outer diameter hose.
Specification:
| Construction |
Chrome plated all metal housing |
| Output Fitting |
1/4" NPT-MALE |
| Input Fitting |
Compression fitting to fit 1/8" NPT-MALE |
| Max Air Pressure |
150 PSI |
| Power Source |
both for 12 volt & 24 volt DC |
Package Included:
| 1 X |
Air Horn Electric Solenoid Valve |
