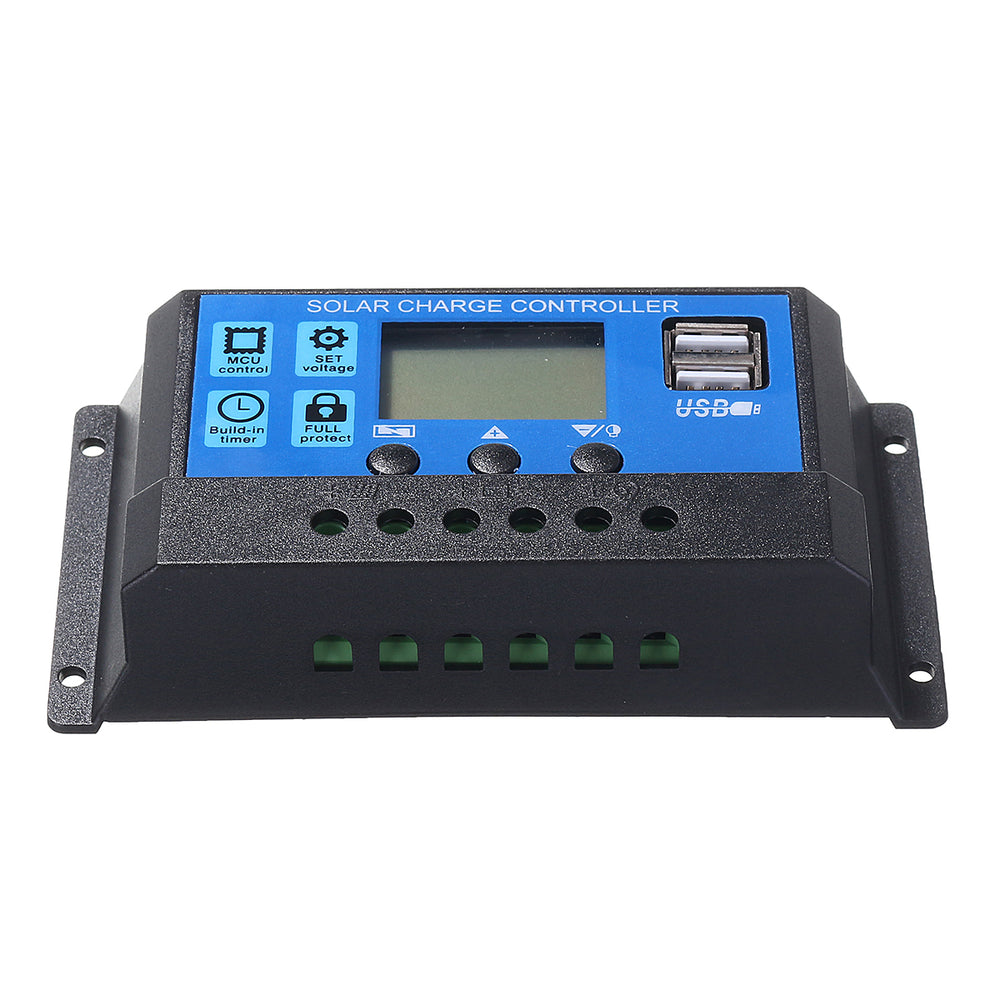

10A/20A/30A 12/24V LCD Display Photovoltaic Solar Controller with Dual USB Ports
$11.99
In Stock
Description
Description:
1. Build-in industrial micro controller.
2. Fully 4-stage PWM charge management.
3. One-key setting,digital display, auto memory function.
4. Reverse current protections, low heat productions.
5. Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.
Specifications:
Buck charge |
22.8V |
Float charge |
21.4V |
USB output |
5V/3A |
Working current |
10A |
Self-consume |
<10mA |
Discharge stop |
21.4V |
Voltage |
DC 12V/24V |
Max solar input |
<50V |
Rated working current |
≤20A |
Discharge reconnect |
25.2V |
Working temperature |
-35℃~60℃ |
Output voltage |
12V/24V Automatically distinguish voltage |
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
Package Included:
| 1X | controller |
