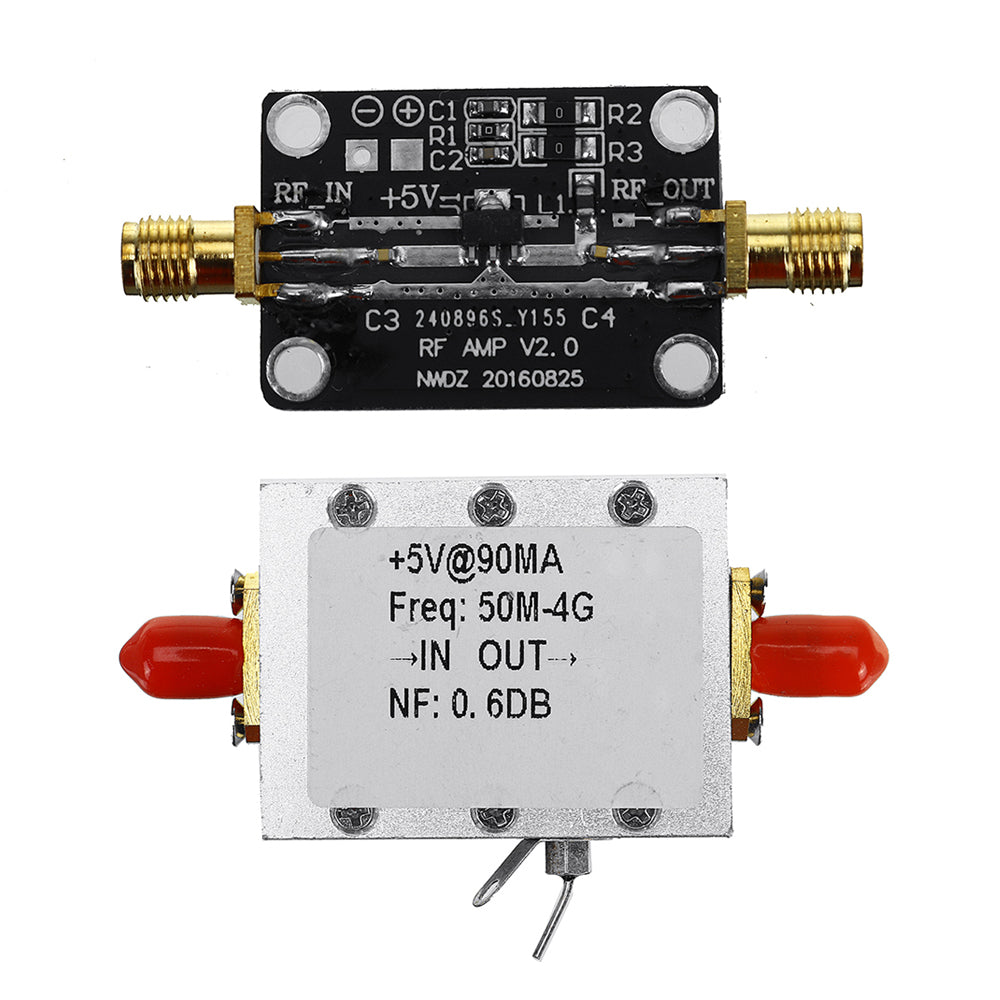

    0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm
    0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm 0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm

    0.05-4GHz Ultra-low Noise NF=0.6dB High Linearity Broadband Amplifier LNA Input -110dBm

    $9.99
    In Stock

    Description

    • Voltage: DC5V

    Module parameters:
    1. Supply voltage: typical +5V (typical current value 90mA)
    2. Gain: typical value 18dB@0.9G
    3. Input and output impedance: 50 ohms
    4. Maximum output power: P1db 22dBm(@2GHz
    5. Input signal: <+10dBm (input can be as low as -110dBm, output signal is already distorted when input is greater than +10dBm)
    6. Bandwidth: 0.05-4GHZ (gain is different at different frequencies, please refer to S21 curve index for details)
    7. Noise figure: 0.6dB@0.9GHz

    Package included:
    (shell optional)

    1 x RF Amplifier
