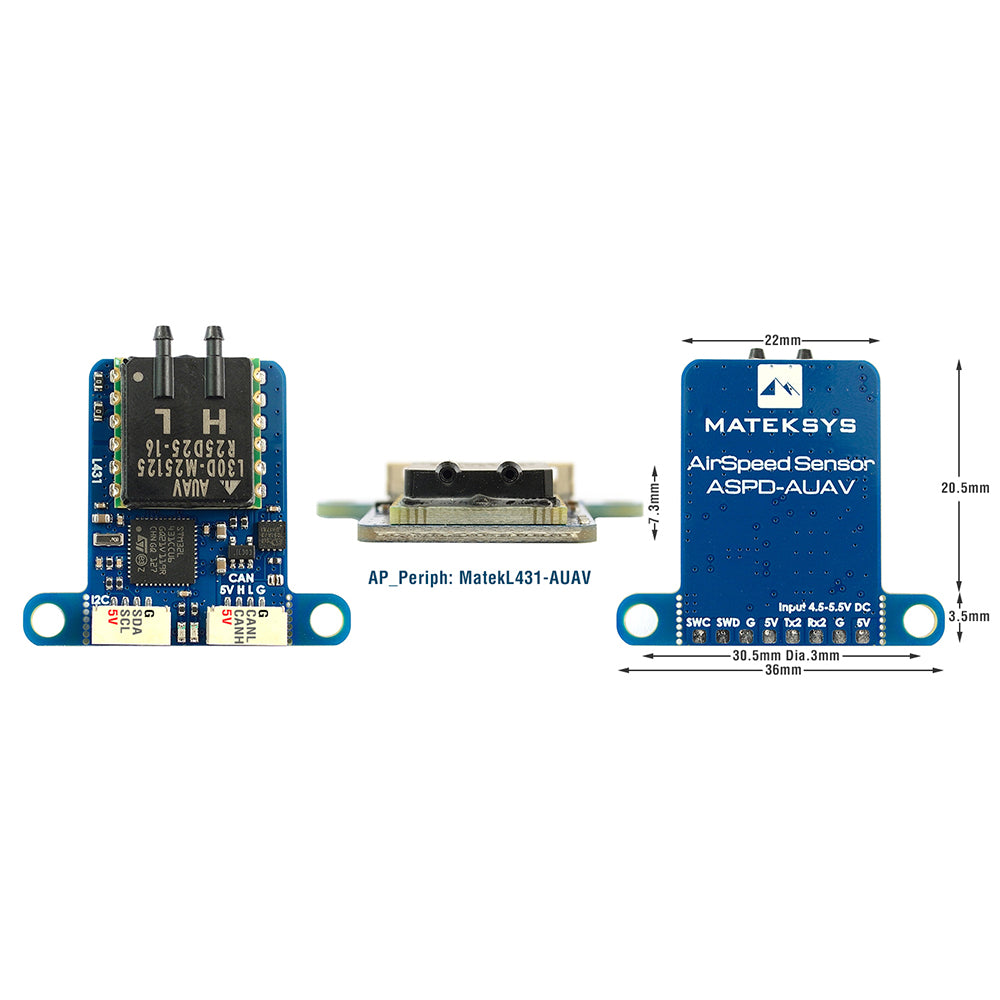

ASPD-AUAV Digitaler Luftgeschwindigkeitssensor AUAV-L30D L431 CAN Node Alle Sensoren für RC FPV Feststoff RC Flugzeug - Blue

Specification:

Model: Digital Airspeed Sensor ASPD-AUAV

Input Voltage Range: 4.5~5.5V

Power Consumption: 26mA

Operating Temperatures: -30°C to 85°C

Pressure Range: 7500Pa (± 30 inH2O)

Burst Pressure: 103kPa

Speed Range: 400 km/h(111 m/s)

Size: 36mm*32mm*7.3mm

Weight: 5g

3D step file ASPD-AUAV_STEP.zip

Features:

- ArduPilot AP_Periph L431 CAN node

- All sensors AUAV-L30D

- CAN & I2C Interface

- CAN JST-GH connector, DroneCAN Protocol

- I2C JST-GH connector, AUAV-L30D I2C mode

- TX2, MSP protocol

- CAN bootloader LED, Blue

- Fast blinking, AP_Periph bootloader

- Slow blinking, CAN Node ready

- 3.3V Power LED, Red

AP_Periph & DroneCAN Protocol

Firmware, Click Here

AP_Periph, Click Here

DroneCAN protocol, Click Here

Package Included:

1 x ASPD-AUAV

2 x JST-GH-4P to JST-GH-4P 20cm silicon wire

1 x Pitot Tube

1 x Clear silicon tubing 40cm
